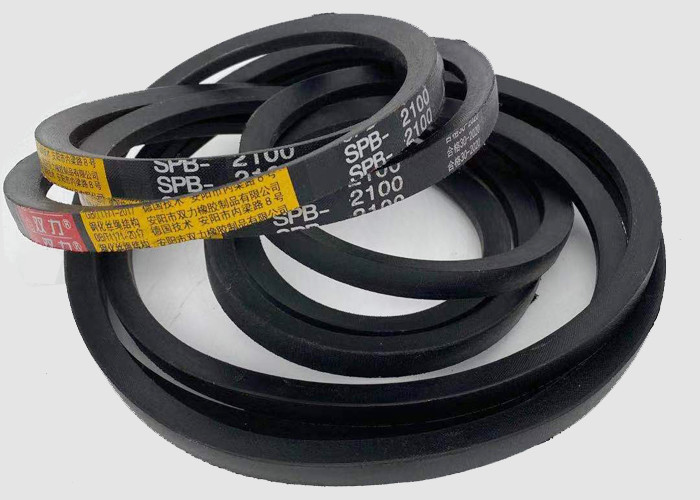

Wrapped V Agriculture Belt For Machine SPB V Belt , Made Of Natural Rubber

Description:

The effective treatment method of the V-belt deviation of the air compressor

When the machine is operating, the triangle belt of the air compressor may be misaligned. In this case, some customers may be a headache, but there is no need to worry, for the reference of the majority of users. The methods for adjusting the deviation of the V-belt of the air compressor can be summarized as follows.

1. Adjust the tension mechanism law. When the ordinary V-belt is running, if it runs to the same side under no load or heavy load, it indicates that the tightness of the two sides of the tape is different. Adjust the tensioning mechanism according to the rule of "running tight without loosening" Screw or counterweight; if the ordinary V-belt runs sideways and has no fixed direction, it means that the ordinary V-belt is loose and the tensioning mechanism should be adjusted.

2. Adjust the roller method. If the ordinary V-belt runs off the drum, it means that the installation of the drum is not level, the drum is moving on one side, or one end of the drum is at the front and the other is at the back. At this time, the levelness and parallelism of the roller should be corrected.

3. The method of adjusting the roller support (or frame). If the ordinary V-belt always deviates to one side when there is no load, then the idler support on the deviated side should be moved 1-2cm forward in the running direction of the ordinary V-belt, or the other idler support (or rack ) Increase the height appropriately.

4. The method of removing stickies. If there is material sticking to the part of the roller and the supporting roller, the diameter of the place will increase, which will increase the pulling force of the ordinary V-belt, which will cause deviation. At this time, the adhering materials should be cleaned up in time.

5. Adjust the gravity method. If the ordinary V-belt does not deviate when there is no load, but always deviates to one side under heavy load, it means that the ordinary V-belt has been eccentric. The position of the receiving hopper or the ordinary V-belt machine should be adjusted so that the ordinary V-belt is evenly loaded to prevent its deviation.

6. Adjust the ordinary triangle belt method. If the edges of the ordinary V-belt are severely worn or the seams of the ordinary V-belt are not parallel, the tension on both sides of the ordinary V-belt will be inconsistent. The ordinary V-belt should be re-dressed or replaced.

7. Installation method of deflection adjusting roller. If two sets of automatic self-aligning rollers (flat rollers or grooved rollers) are installed on the conveyor, the deviation of the ordinary V-belt can be automatically corrected.

8. Install limit roller method. If the ordinary V-belt always deviates to one side, you can install a limit vertical roller on the frame on the deviated side; this way, on the one hand, the ordinary V-belt can be forced to reset, and on the other hand, the vertical roller can reduce the deviated side. The pulling force of the ordinary V-belt makes the ordinary V-belt move to the other side.

9. Install automatic deviation correction. Install an automatic deviation correction device on the conveyor to prevent the deviation of ordinary V-belts.

Structure

-Cloth cover layer: Cotton/polyester blend
-Top rubber: NR,SBR
-Reinforcement body: Polyester cable cord
-Bottom rubber: NR,SBR

Technical Info:
Consistent performance in multiple V-Belt drives - ensures all belts will measure within ARPM matching standards
Use pulleys made to ARPM standards
Oil & Heat Resistant: Durability in tough environments

Model:

Product Image:

About us:

Henan Shuangli Rubber Co., Ltd. is a scientific and technological company integrating research, development and production of triangle belts. It has more than 310 employees.The factory covers an area of 30,000 square meters and a building area of 15,000 square meters,and it’s only one Triangle belt manufacturer in north Henan. It won the honorary titles successively over the years,such as the National Export-oriented of Advanced Units and the Key Protection Enterprises in Henan Province,the Contract-abiding and Trust-worthy Enterprise, Credit Henan AAA Credit Enterprise. In 2017, it passed the certification of ISO9001, ISO14001, OHASA18001 International Quality System, environmental,occupational,healthy and safety certification.The company has 2 national patents currently. In 2015, it was rated as a famous trademark in Henan Province. In 2019, there was no blind spot in the coverage of cities and counties nationwide. At the same time, it was selected as one of the top ten brands of the national triangle belt.
The company’s products are sold by agents all over the country with the advantages of super high quality and complete specifications. The products are sold in Henan, Hebei, Shandong, Shanxi, Hunan, Hubei, Guangdong, Guangxi Jiangxi, Hainan, Ningxia, Heilongjiang, Jilin, Liaoning, Inner Mongolia, Xinjiang, Lhasa and all major provinces, cities and counties, and autonomous regions across the country, they are also exported to Laos, Myanmar, Pakistan, Kyrgyzstan and other countries, and have been trusted and praised by the majority of sellers and users.

Q&A:

Q1. What is your terms of packing?

A: Generally, we pack our goods in neutral white boxes and Woven bag. If you have legally registered patent,

we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages

before you pay the balance.

Q3. What is your terms of delivery?

A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?

A: Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends

on the items and the quantity of your order.

Q5. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q7. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;

2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.

         Henan Shuangli Rubber Co., Ltd. is a scientific and technological company integrating research, development and production of triangle belts. It has more than 310 employees.The factory covers an area of 30,000 square meters and a building area of 15,000 square meters,and it’s only one Triangle belt manufacturer in north Henan. It won the honorary titles successively over the years,such as the National Export-oriented of Advanced Units and the Key Protection Enterprises in Henan Province,the Contract-abiding and Trust-worthy Enterprise, Credit Henan AAA Credit Enterprise. In 2017, it passed the certification of ISO9001, ISO14001, OHASA18001 International Quality System , environmental,occupational,healthy and safety certification.The company has 2 national patents currently. In 2015, it was rated as a famous trademark in Henan Province. In 2019, there was no blind spot in the coverage of cities and counties nationwide. At the same time, it was selected as one of the top ten brands of the national triangle belt.
         The company has took the lead in introducing a complete set of vulcanization tank production equipment from Germany,and international?advanced computer numerical control testing systems.The company hires top engineers as the technical director,and sets up a domestic first-class production line. The developed products are tempered wire V-belt,they are far ahead of similar products in many aspects such as strong tensile strength, high wear resistance, non-elongation,anti-aging,high temperature resistance,flexible resistance. It has been rated as a famous trademark in Henan Province.
         The company’s products are widely used in petroleum, chemical, metallurgy, mining, agricultural machinery, cement, paper, textile, ceramics and other industry facilities.
         The developed products have are various Specification models,like 0, A, B, C, D, E, F, 3V, 5V, 8V, SPA, SPB, SPC and joint belts.
         The company’s products are sold by agents all over the country with the advantages of super high quality and complete specifications. The products are sold in Henan, Hebei, Shandong, Shanxi, Hunan, Hubei, Guangdong, Guangxi Jiangxi, Hainan, Ningxia, Heilongjiang, Jilin, Liaoning, Inner Mongolia, Xinjiang, Lhasa and all major provinces, cities and counties, and autonomous regions across the country, they are also exported to Laos, Myanmar, Pakistan, Kyrgyzstan and other countries, and have been trusted and praised by the majority of sellers and users.
         Enterprise goal: To building the first brand of China's tempered wire triangle belt!
         Plans in recent years: To create China's largest and most complete triangle belt warehouse!
