| Brand Name : | Teyma |
| Model Number : | 3V |
| Certification : | ISO9001-2015，GBT45001-2020,ISO 45001-2018,ISO 14001-2015,ISO9001-2015 |
| Price : | 2-200¥/pieces |
| Payment Terms : | T/T, L/C, D/P |
| Supply Ability : | Three Millions Pieces Per Month |
| Delivery Time : | 20 work days |
3V Rubber Transmission Drive Wrapped Rubber V Belt Top Width 9.5mm Height 8mm Length 49''-140
V-belt factory direct sales products are mainly used in industrial production, which play a very important role in the operation of the machine. It needs to be trimmed during production to ensure that the produced V-belts are of high quality and effective. The manual trimming of the triangle belt is the original method, which is inefficient and difficult to guarantee. Especially for products with complex configurations and high precision requirements, it is difficult to be thorough and clean, and it is easy to damage the connection between the product body and the overflow. . In order to improve efficiency and quality, mechanical trimming has appeared, and a special electric trimming machine with a rotating blade is common. The machining accuracy of mechanical trimming exceeds that of manual trimming, and the efficiency is also doubled. Especially for a multi-cavity product with a mold, a matching tool can be designed according to the arrangement and distribution of the product.
| Catalog | ||||||
| S/N | Classification | Model | Top width(mm) | Heigth(mm) | Length(inch) | Executive Standard |
| 1 | Classical V-belt for general drive | Z (O) | 10 | 6 | 22''----185'' | GB/T1171-2017 |
| 2 | A | 13 | 8 | 22''----185'' | ||
| 3 | B | 17 | 11 | 26''----590'' | ||
| 4 | C | 22 | 14 | 47''----590'' | ||
| 5 | D | 32 | 19 | 98''----630'' | ||
| 6 | E | 38 | 25 | 110''----630'' | ||
| 1 | Narrow V-belt for general drive | 3V (9N) | 9.5 | 8 | 49''----140'' | GB/T12730-2018 |
| 2 | 5V (15N) | 15 | 13 | 49''----532'' | ||
| 3 | 8V (25N) | 25 | 23 | 100''----532'' | ||
| 4 | SPA (13N) | 13 | 10 | 47''----197'' | ||
| 5 | SPB (16N) | 17 | 14 | 49''----331'' | ||
| 6 | SPC (22N) | 22 | 18 | 74''----441'' | ||
| 7 | SPZ (10N) | 10 | 8 | 46''----140'' | ||
| 2 | Joined classical V-belts | BJ | 17 | 13 | 57''----197'' | HG／T 3745—20 11 |
| 3 | CJ | 22 | 17 | 77''----473'' | ||
| 4 | DJ | 32 | 21 | 197''----394'' | ||
| 5 | EJ | 110''----630'' | ||||
| 1 | Joined narrow V-belts | 3V (9J) | 9.7 | 9.7 | 55''----140'' | HG/T2819-2010 |
| 2 | 5V (15J) | 15.7 | 15.7 | 49''----315'' | ||
| 3 | 8V (25J) | 25.4 | 25.4 | 100''----426'' | ||
| 4 | SPC | 22 | 20 | 78''----441'' | ||
| Length can be customized. | ||||||

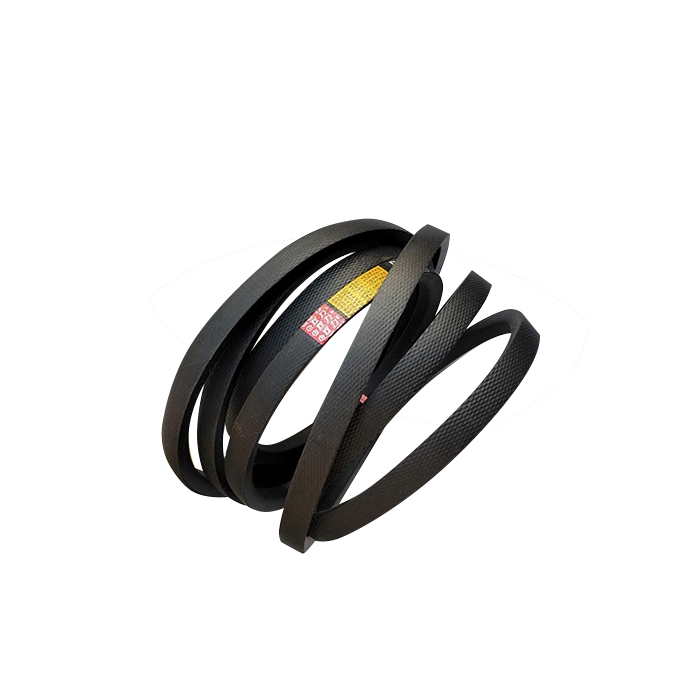

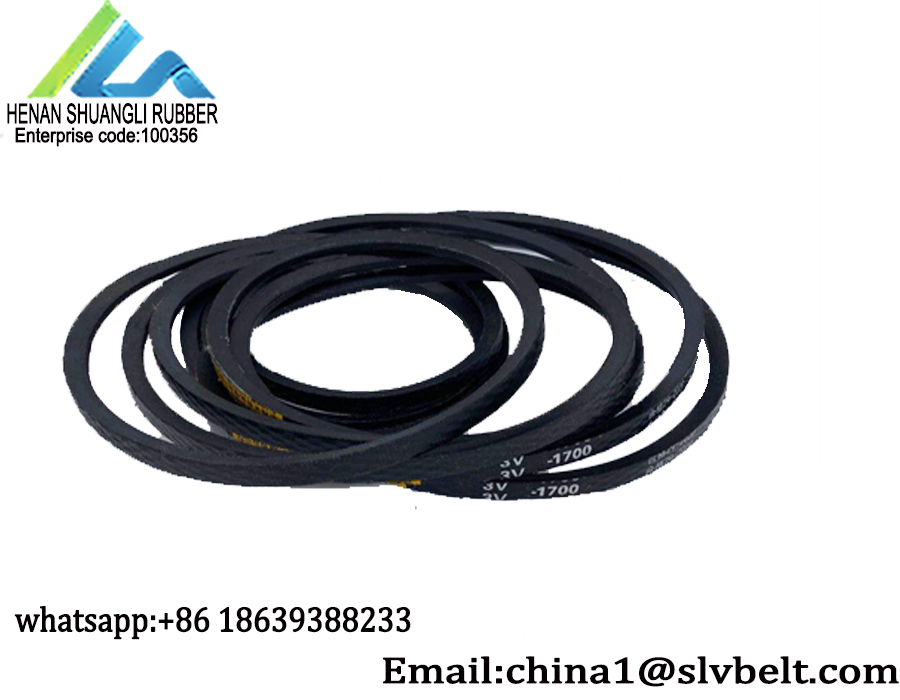

Product Image:
Henan Shuangli Rubber Co., Ltd. is a scientific and technological company integrating research, development and production of triangle belts. It has more than 310 employees.The factory covers an area of 30,000 square meters and a building area of 15,000 square meters,and it’s only one Triangle belt manufacturer in north Henan. It won the honorary titles successively over the years,such as the National Export-oriented of Advanced Units and the Key Protection Enterprises in Henan Province,the Contract-abiding and Trust-worthy Enterprise, Credit Henan AAA Credit Enterprise. In 2017, it passed the certification of ISO9001, ISO14001, OHASA18001 International Quality System, environmental,occupational,healthy and safety certification.The company has 2 national patents currently. In 2015, it was rated as a famous trademark in Henan Province. In 2019, there was no blind spot in the coverage of cities and counties nationwide. At the same time, it was selected as one of the top ten brands of the national triangle belt.
|
|
